Billets
Billets make up 46 per cent of EGA’s total production. Produced using Airslip technology, all billets are homogenized and 100 per cent ultrasound-inspected before delivery. Inherently superior in quality and intrinsic purity, a large proportion of the annual production is cast in high extrudability alloys. EGA’s products are supplied for construction (windows and door frames), transportation, engineering, consumer durables, automotive, forging, as well as many other applications. Several famous landmarks incorporate EGA’s aluminium products, such as Malaysia’s Petronas Towers, Dubai’s Burj Al Arab and the Dubai Metro.
EGA’s extrusion billets have been declared suitable for sustainable building practices, as per the criteria defined by the US Green Building Council’s Leadership in Energy and Environmental Design (LEED) rating system and the Deutsche Gesellschaft für Nachhaltiges Bauen (DGNB, the German Sustainable Building Council).
Alloys
- Produced in common AA alloy series 1000, 3000 and 6000 to customer specifications.
Packaging

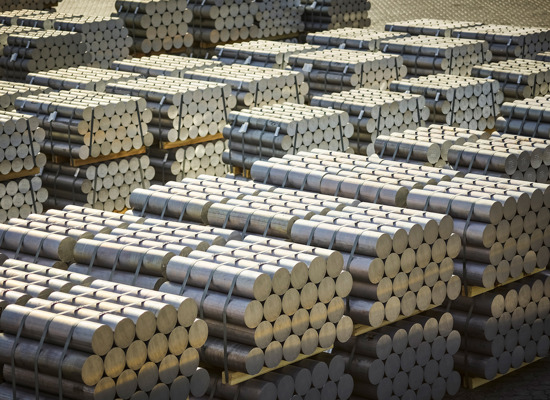

- Packed in steel- or plastic-strapped bundles on wooden runners for convenient fork-lift handling.
Shapes/Forms
DIAMETERS
152 mm, 155 mm, 178 mm,
203 mm, 216 mm, 228 mm,
254 mm, 273 mm, 279 mm,
305 mm, 355 mm, 381 mm
and 406 mm
DIAMETER TOLERANCE:
± 1 mm
BILLET CUT LENGTH
420 mm to 7,500 mm
CUT LENGTH TOLERANCES
420 mm to 2,000 mm: ± 3 mm
2,000 mm to 7,500 mm: ± 0.39”
BOW TOLERANCES
2 mm per meter length of a log
SQUARENESS OF CUT
1 mm per 100 mm of the diameter; or 0.5° maximum deviation
Billets

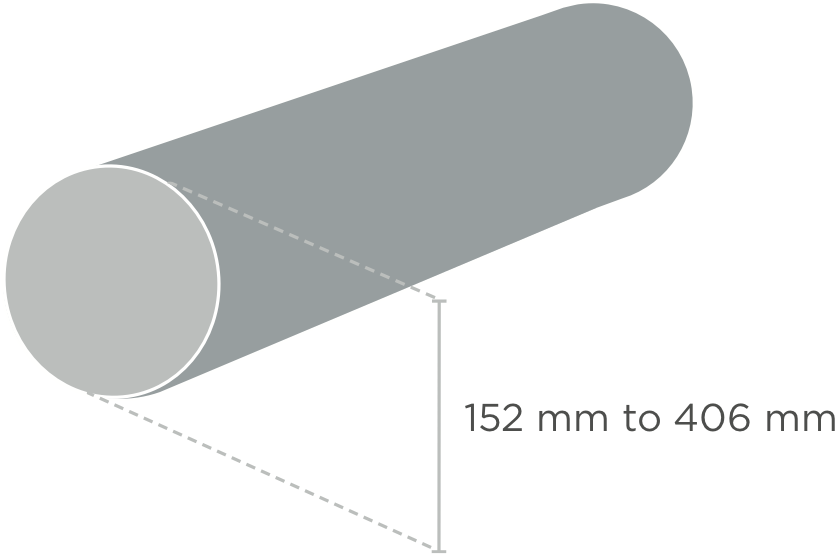

EGA's billets are cut from 420 mm - 7,500 mm in length and are available in diameters from 152 mm to 406 mm.
